Torque Multipliers
A customer came to us needing to increase the torque output of various tools. We provided a range of 3 planetary torque multipliers capable of providing torque values of up to 2000Nm.
The Challenge
- Increase the torque output of a number of different tools
- Provide a solution that is capable of torque outputs up to 2000Nm
- Provide a solution that is customizable and compatible with various styles of assembly tools
Solution

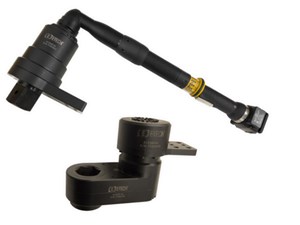

- Designed a range of torque multipliers that are modular and compatible with various styles of assembly tools
- Modular design leads to commonality across product groups to reduce design time, lead time and overall cost to end users
- Designed a range of torque multipliers that provide torque outputs of 400Nm to 2000Nm
- Adaptable to crowfoot attachments for limited clearance applications
- Currently available sizes:
- 400Nm | 3/4" Square drive | Gear ratio 6.429:1
- 600Nm | 3/4" Square drive | Gear ratio 7.929:1
- 2000Nm | 1 1/2" Square drive | Gear ratio 54.4:1
