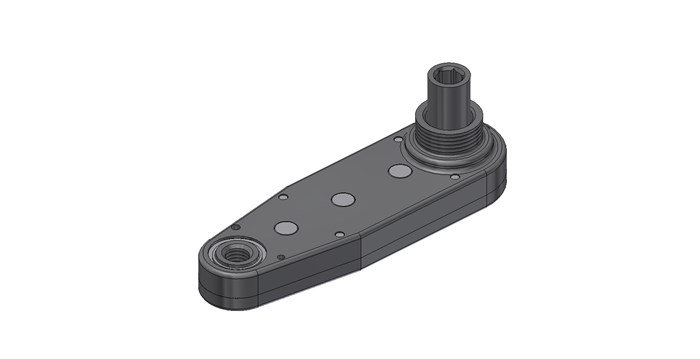

Drilling Crowfoot

Drilling Crowfoot

Features & Benefits

  • 4 product groups
    • 0 Series-Light duty with radial/thrust bearing design to operate at speeds up to 6000 RPM - Max Drill Size 1/8”
    • 1 Series-Standard duty with radial/thrust bearing design to operate at speeds up to 6000 RPM - Max Drill Size 3/16”
    • 2 Series-Medium duty with radial/thrust bearing design to operate at speeds up to 6000 RPM - Max Drill Size 1/4”
    • 3 Series-Heavy duty with radial/thrust bearing design to operate at speeds up to 6000 RPM - Max Drill Size 5/16”
  • Split Housing Design - Allows for strong “I Beam” type construction to minimize deflection under load.
  • Heat-Treated Housing - Reduced wear and extends life.
  • Stepped Axle - Positive containment of gear axles eliminate axle movement.
  • Bearing Construction - Needle bearing support for input and idler gears.
  • Output Gear Bearing Design - Optimized design with radial and thrust support to reduce heat and extend life.

Maintenance & Service

  • Traceability - Model, Order a number and Serial number engraved on each attachment.
  • Torx Head Cap Screws - Allows for repair without “stripping” of traditional hex head screws.
  • Lubrication - External grease fittings allows for preventative maintenance.
  • Threaded Input Housing - Allows for service of input drive area.
